Product Overview

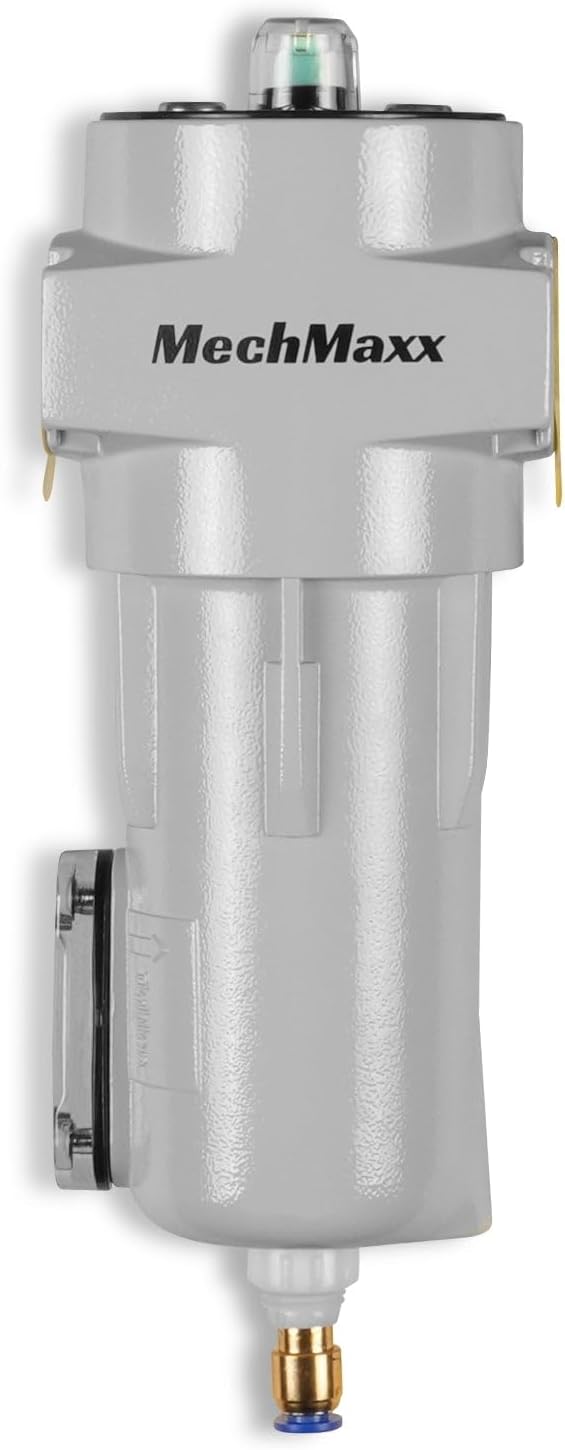

The 63 CFM Compressed Air Oil-Water Separator Precision Filter,0.01μm,Oil Content 0.01ppm, With Auto Drain, Pressure Indicator,Recommended for use with M15AC230,Model CAF151 approaches everyday needs from a quality-first angle, with compact build and thoughtful design. Key specs include brand: MechMaxx, power source: No, included components: Air Oil-Water Separator Precision Filter. Notable features include max flow and flow 63, contributing to its practical character.
Key Features

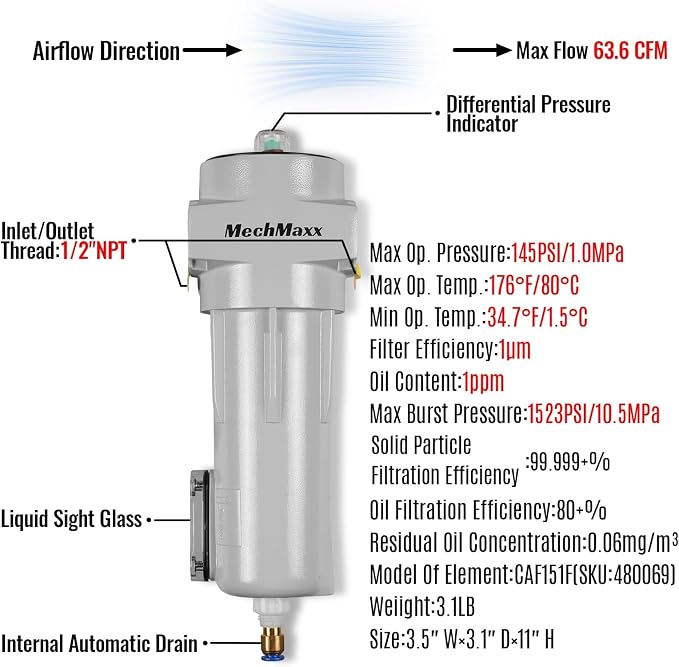

- Max Flow:63.6 CFM ,Recommended for use with M15AC230（SKU:300002）air compressor.
- The housing is made of die-cast aluminum alloy with a compact structure to ensure safe use, capable of withstanding 464 PSI(3.2 MPa) for 96 hours and a maximum burst pressure of 1,523 PSI (10.5 MPa).
- The housings undergo cleaning, degreasing, and special anti-corrosion treatment before coating to enhance durability, making them suitable for offshore platform operations.

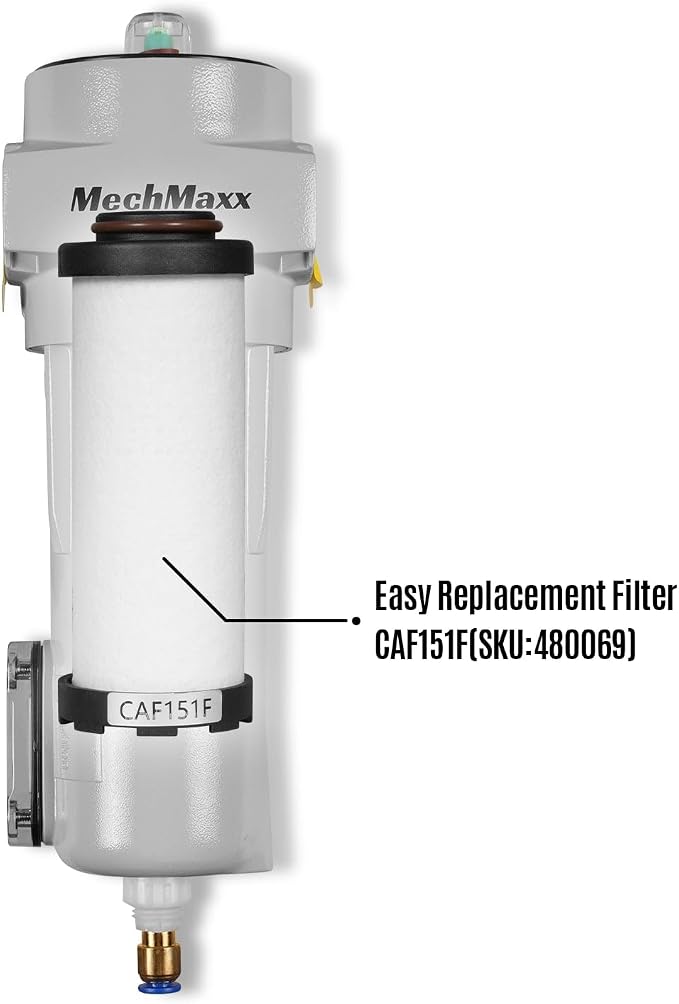

- Under operating conditions of 35–176°F (1.5~80℃)and pressure not exceeding 232 PSI(1.6MPa), the housing has a service life of up to 15 years, and the filter element lasts 6,000–8,000 hours.
- The differential pressure gauge or indicator can easily measure differential pressure and indicate when the filter element is clogging prematurely, thereby preventing excessive pressure or abnormal clogging. If the indicator needle points to the green area, this means that the filter element does not need to be replaced.

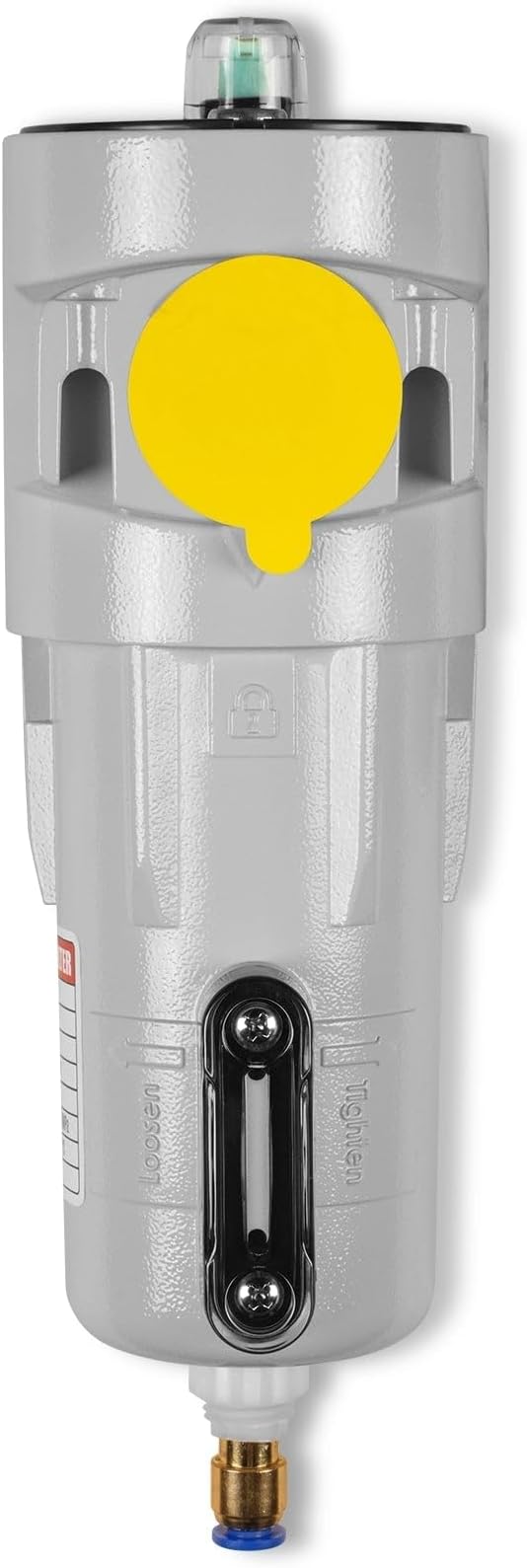

- Liquid sight glass made from unique materials is used to check if the drain is blocked.
- The arrow markings clearly show the users the direction of the airflow.
Why Choose the MechMaxx 63 CFM Compressed Air Oil-Water Separator Precision Filter
Consistently chosen by air-compressor accessories buyers, the 63 CFM Compressed Air Oil-Water Separator Precision Filter,0.01μm,Oil Content 0.01ppm, With Auto Drain, Pressure Indicator,Recommended for use with M15AC230,Model CAF151 delivers versatile construction alongside max flow for reliable long-term value.
Best For
The MechMaxx 63 CFM Compressed Air Oil-Water Separator Precision Filter is best suited for: offshore platform operations.
Quick Summary
The MechMaxx 63 CFM Compressed Air Oil-Water Separator Precision Filter is a Air-Compressor Accessories product by MechMaxx. Brand: MechMaxx. Power Source: No. Included Components: Air Oil-Water Separator Precision Filter. Model Name: CAF151. Price: $329.98.
Product Specifications
| Specification | Details |
|---|---|
| Brand | MechMaxx |
| Power Source | No |
| Included Components | Air Oil-Water Separator Precision Filter |
| Model Name | CAF151 |
